The Workman® Self-Retracting Lanyard
In industries such as steel production, building maintenance, mining, manufacturing & even movie stunt work, self-retracting lanyards (SRL) are pivotal to keep users safe during a fall arrest event. When attached to an anchor point and a full body harness the product is designed to act much like a seat or shoulder belt in a car in which the SRL allows for ease of mobility while keeping a constant tautness to effectively prevent falls. During an event, the internal braking mechanism engages & disperses the energy of the fall over a short distance, which limits the force applied to the user’s body.
Key features for this product include:
Through RFID technology the product simplifies both product tracking and inspection.
An integral, ergonomic carrying handle for easier transport and installation.
A 400-lb/136 kg working capacity for increased versatility.
A swiveling snap hook with a load indicator at the end of the lifeline that greatly limits any twisting of the cable. This also alerts users that the Workman SRL has been involved in a fall.
Available in 30- and 50-ft / 9 and 15 m lengths to provide exceptional mobility.
Available with galvanized or stainless-steel lifelines to fit varied applications.
As part of the Workman family of cost-conscious products many design iterations took place until a final concept was defined. After features were chosen such as RFID capability, ease of device transport, speed of setup, and visually reflecting the ruggedness of the product, various configurations were created to express both form & function as it related to the product family’s color palette.
The following concepts include:

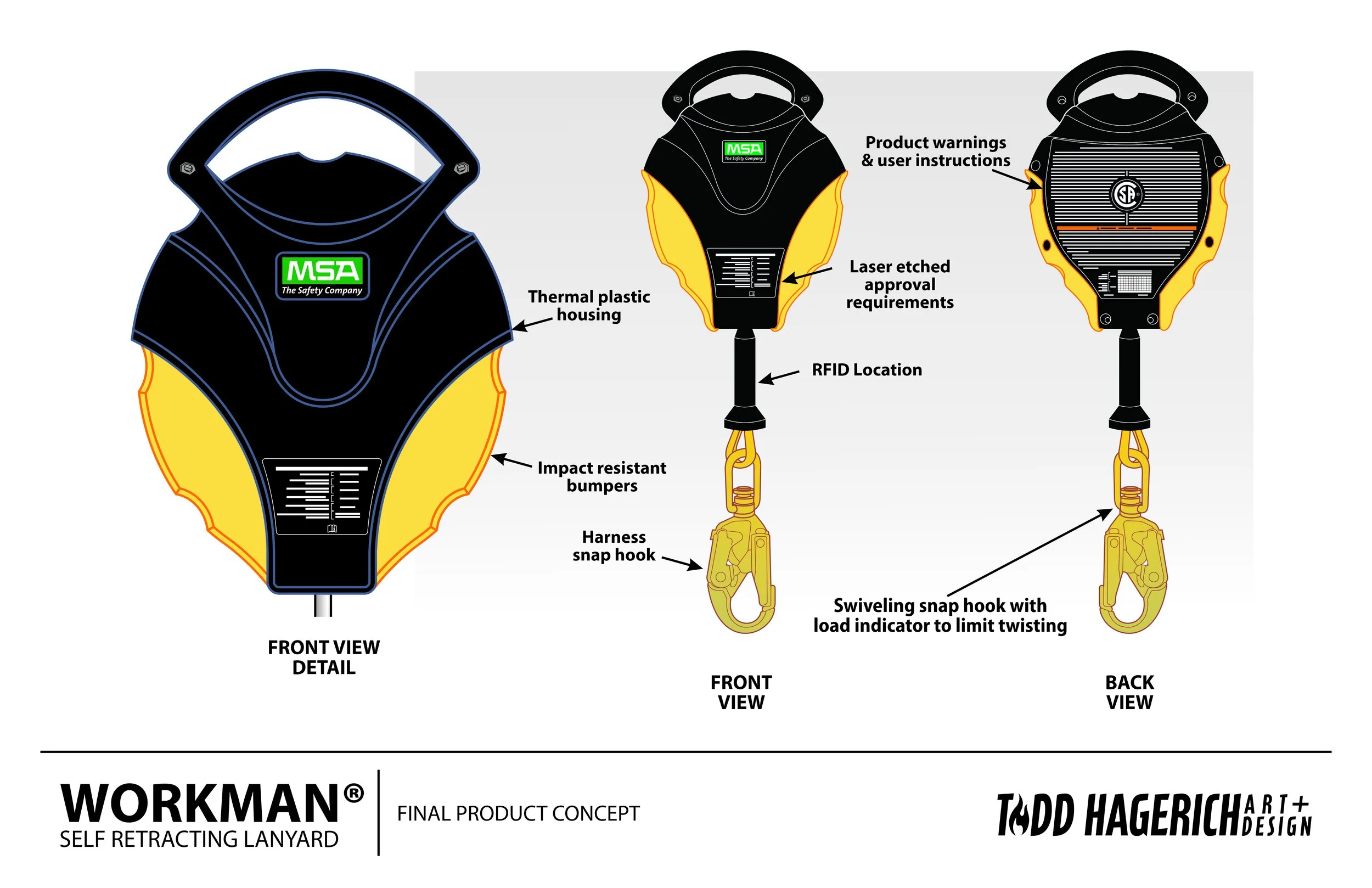

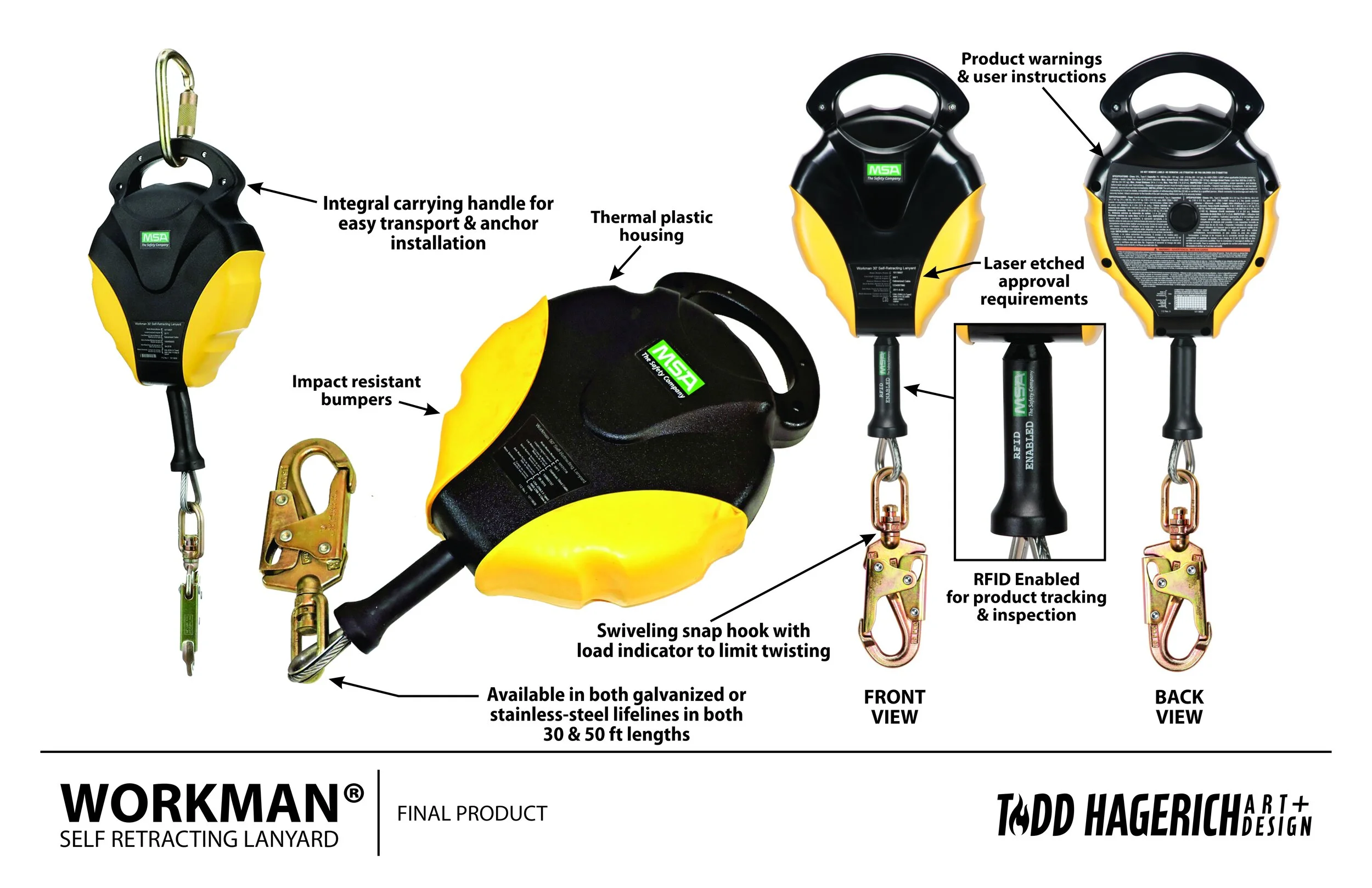

Final concepts noting key product features.

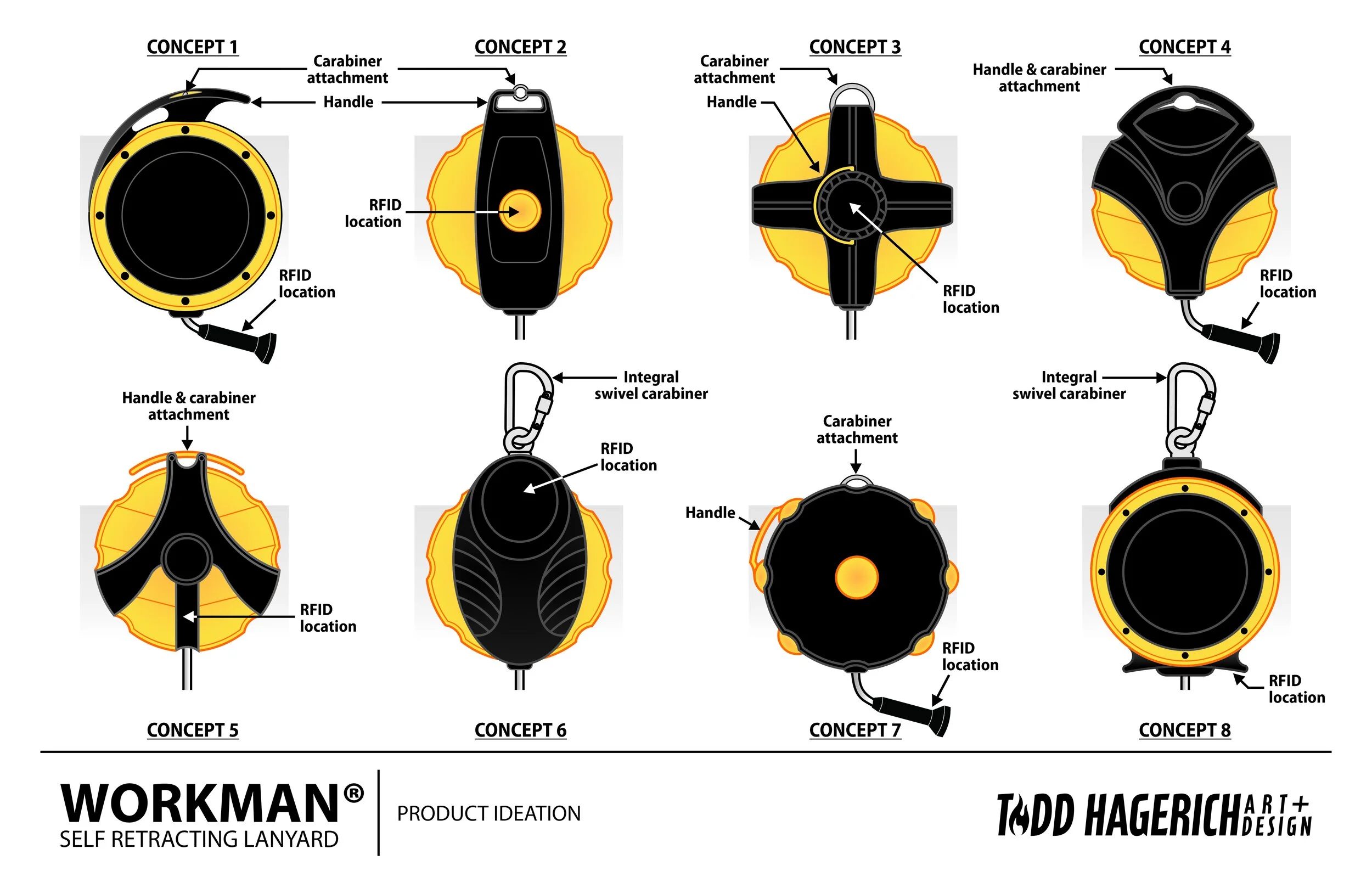

Product ideation illustrating various product configurations, functions, and design elements.
